QUESTION 41
In CAN networking of the NetCol800o-C, what is the default value of toggle switch 1?

A. N/A
B. ON
C. NULL
D. OFF

Correct Answer: B
QUESTION 42
How many cold aisle T/H sensor ports are there on each NetCol8000-E220锛?

A. 3
B. 5
C. 4
D. 2

Correct Answer: A
QUESTION 43
Which of the following are routine maintenance items for the PSU of the ECC800-Pro?

A. Checking whether the power cable is properly connected.
B. Checking whether the PSU indicator is normal.
C. Checking whether the PSU fan of the ECC800-Pro is running properly.
D. Checking the PSU working status on the ECC800-Pro WebUI.

Correct Answer: ABC
QUESTION 44
The ECC800-Pro is the core component for Fusion Module2000 local management. Southbound components can be connected by using the PoE bus.

A. TRUE
B. FALSE

Correct Answer: A
QUESTION 45
Which component can control lights in a FusionModule2000 and support PAD charging?

A. Access actuator
B. Smart ETH gateway
C. Rack environment unit
D. AC actuator

Correct Answer: D
QUESTION 46
The ETH converter can be installed using the magnet on its rear.

A. TRUE
B. FALSE

Correct Answer: A
QUESTION 47
What are the benefits of PowerEcho for the NetEco?

A. Operation wizard
B. Quick fault locating
C. One-click health check
D. Web-based unified maintenance interface

Correct Answer: ACD
QUESTION 48
Which of the following alarms affects services and requires immediate corrective actions to prevent system breakdown or service interruption?

A. Warning
B. Minor
C. Major
D. Critical

Correct Answer: C
QUESTION 49
The reports on the NetEco can be displayed in various formats, such as a bar chart, pie chart, and line graph.

A. TRUE
B. FALSE

Correct Answer: A
QUESTION 50
How many power supply unit (s) does a Huawei TaiShan200 server support?

A. 2
B. 4
C. 3
D. 1

Correct Answer: A
QUESTION 51
Which of the following parameters affects the alarm triggering conditions of the NetEco?

A. Alarm severities
B. Alarm sound
C. Alarm thresholds
D. Alarm names

Correct Answer: C
QUESTION 52
Which tasks are required to implement remote notification of alarm events on the NetEco?

A. Setting remote notification rules
B. Setting a notification template
C. Setting a notification server
D. Setting a user group

Correct Answer: ABCD
QUESTION 53

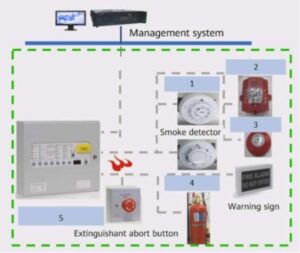

Please match different component names to appropriate positions in the figure.

Select and Place:
Correct Answer:

QUESTION 54
For the ATS on the integrated UPs, flip the operating mode selection lever up to M for the                  mode, or flip it down to Man. for the                     mode.
Correct Answer: automatic -or- manual

QUESTION 55
The following functions can be implemented on the SmartLi WebUI. Please match the function tags to appropriate pages.
Select and Place:
Correct Answer:

QUESTION 56
Please arrange the following steps of initial power-on commissioning of UPS5000-E in correct sequence.

Select and Place:

Correct Answer:

QUESTION 57
Please arrange the following steps of isolating a single UPS in the parallel system in correct sequence.

Select and Place:

Correct Answer:

QUESTION 58
The NetCol5000-A025H40D2 uses the air supply.
Correct Answer: horizontal
QUESTION 59
The NetCol5000-A042 supports two teamwork networking modes: CAN and .
Correct Answer: FE
QUESTION 60
Please arrange the following steps in correct sequence to complete the initial power-on commissioning process of the ECC800-Pro. Commissioning steps: [Start]- [Check Physical Installation] — [ Step 1 ]– [ Step 2 ] – [ Step 3 ] — [ Step 4 ] — [Step 5]– [End ]

Select and Place:

Correct Answer:
