QUESTION 101
Considering the reconstruction cost, technical evolution, and impact scope, IPv6 reconstruction needs to follow which of the following principles?

A. Build an advanced next-generation enterprise IPv6 network architecture to fully support the long-term development and stable operation of enterprise service systems and avoid repeated network construction and investments.
B. Ensure that service migration is smooth and existing users are unaware of the migration.
C. Deploy a dual-stack network for long-term coexistence of IPv4 and IPv6 networks.
D. Select a proper IPv6 upgrade and evolution solution from the overall perspective to properly reuse existing devices and avoid asset wastes.

Correct Answer: ABCD
QUESTION 102
Segment Routing (SR) is a technical architecture designed to forward data packets on a network based on the source routing paradigm. SR-MPLS, as its name suggests, is SR based on MPLS label forwarding.

A. TRUE
B. FALSE

Correct Answer: A
QUESTION 103
When designing IGP routes for an enterprise bearer WAN, ensure that the metric of aggregation-layer links is smaller than that of access-layer links, so that data can be preferentially forwarded over aggregation-layer links.

A. TRUE
B. FALSE

Correct Answer: A
QUESTION 104
The role of an SRv6 node is related to its task in SRv6 packet forwarding. Specifically, the SRv6 headend performs the push action, the transit node performs the swap action, and the endpoint performs the pop action.

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 105
SR-MPLS uses IGP extensions to advertise labels and reserve bandwidth to support high-bandwidth services.

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 106
In Huawei’s CloudWAN solution, the controller can plan traffic paths based on real-time network performance and deliver path information through PCEP or BGP-LS.

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 107

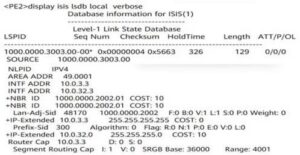

SR-MPLS is enabled on a router, and the LSDB information of the router is as follows. Which of the following MPLS labels cannot be found in the SR-MPLS BE forwarding table?

A. 39002
B. 36002
C. 38002
D. 40002

Correct Answer: D
QUESTION 108
iMaster NCE Agile Open Container (AOC) can manage Huawei devices only.

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 109
Huawei CloudCampus Solution provides location-based services (LBS), obtains Wi-Fi-based terminal location data, and reports the data to developers’ LBS applications. In this case, terminal locations within a certain range can a be calculated. Which of the following statement is incorrect about the interactions between the LBS application and iMaster NCE?

A. The LBS application parses the received terminal location data.
B. iMaster NCE sends a response code verification request to the LBS application, and the LBS application responds to the request.
C. The LBS application generates a verification code. 3 You need to manually copy the verification code to iMaster NCE.
D. After the verification code is verified, iMaster NCE sends terminal location data to the LBS application.

Correct Answer: B
QUESTION 110
During the establishment of an SSH connection, the SSH server and client need to negotiate multiple algorithms. Which of the following algorithms may be used for SSH user authentication?

A. 3des-cbc
B. ssh-dss
C. aes128-ctr
D. hmac-shal

Correct Answer: B
QUESTION 111
Telemetry is a technology that remotely collects data from physical or virtual devices at a high speed. When gRPC is used to push telemetry data, which of the following is not involved in the data model layer?

A. Telemetry layer
B. Notification message layer
C. RPC layer
D. Service data layer

Correct Answer: B
QUESTION 112
A network administrator runs the display telemetry subscription command on a device to check telemetry subscription information. The command output is as follows.

Which of the following statements is incorrect?

A. The subscription mode is static subscription.
B. The device sends sampled data every second.
C. The subscription name is Sub1.
D. The IP address of the device is 192.168.56.1.

Correct Answer: D
QUESTION 113
During the establishment of an SSH connection, the server and client need to negotiate multiple algorithms. Which of the following key algorithms may be used for session encryption?

A. hmac-shal
B. 3des-cbc
C. ssh-dss
D. diffie-hellman-group1-sha1

Correct Answer: C
QUESTION 114
A client sends an HTTP request to a server and the server sends back a response with status code 403 (Forbidden). Which of the following are possible causes?

A. The user performed an unauthorized operation.
B. The user name or password is incorrect.
C. The requested resource is not found.
D. The certificates do not match.

Correct Answer: AB
QUESTION 115
For telemetry data push, data can be transferred between devices and collectors using the TLS protocol. TLS must be configured for data encryption if data is pushed based on gRPC.

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 116
Which of the following are typical application scenarios for iMaster NCE service openness and programmability?

A. Manage other vendors’ devices and interconnect with third-party devices quickly.
B. Allow users to define network services and quickly deliver these services through the web UI.
C. Automatically generate northbound RESTful APIs.
D. Interconnect with southbound devices using NETCONF or STelnet.

Correct Answer: ACD
QUESTION 117
The syntax of HTTP request packets is:
＜request-URL>
＜entity-body>

A. TRUE
B. FALSE

Correct Answer: B
QUESTION 118
The TTL field encapsulated to the MPLS label header can prevent infinite loops of MPLS packets. Which of the following statements regarding the TTL field are correct?

A. MPLS provides two processing modes on the TTL field: 1. TTL in the MPLS header copies the IP TTL value when an IP packet enters the MPLS network. 2. The ingress LER sets the TTL value in the MPLS header to 255.
B. The processing of IP a TTL copy hides the LSR in a MPLS domain, improving the network security.
C. MPLS encapsulation in frame mode supports the TTL field. MPLS encapsulation in cell mode does not support the TTL field.
D. If TTL copy is disabled, users can use the tracert function to view the LSR of the MPLS domain.

Correct Answer: ABC
QUESTION 119
In the following figure, R1, R2, R3, and R4 all belong to OSPF area 0. The link costs are marked in the figure. The Loopback0 addresses of R1, R2, R3, and R4 are advertised to OSPF. R1, R2, and R3, which are R4 clients, use Loopback0 to establish an IBGP peer relationship with R4. The directly connected network segment 172.20.1.4/32 of R4 s advertised to BGP. Which of the following statements are correct about the direction of traffic from R1 to 172.20.1.4/32?

A. The preferred path is R1-R2-R4.
B. The preferred path is R1-R3-R4.
C. Packet loss occurs during both the power-off and startup processes of R3.
D. If the stub router on-startup command is run on R3, packet loss occurs during the power-off process of R3 but no packet loss occurs during the startup process of R3.

Correct Answer: BC
QUESTION 120

On the network shown in the following figure, a remote LDP session needs to be established between SWA and SWC. Which of the following statements is correct?

A. You don’t need to specify the LSR ID of the remote peer.
B. You need to create a remote peer and specify an LSR ID for the remote
C. The existing configuration is correct.
D. You need to configure the directly-connected interfaces between SWA and SWC to set up TCP connections.

Correct Answer: B
